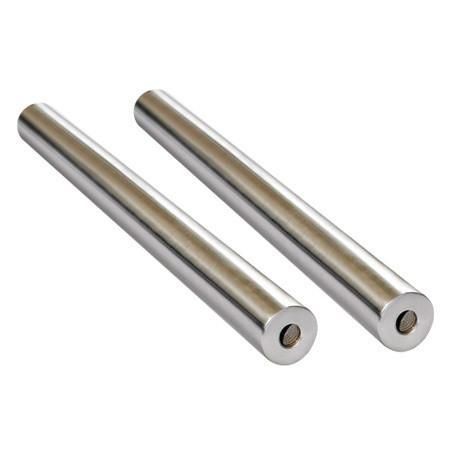

Housing Material: SS304, SS316L Working Temperature: max 350℃ Magnetic Tube's Size:Customized
High Efficiency: Our magnetic filters and tubes effectively separate magnetic particles from liquids and gases.
Durability: Constructed from high-quality materials to withstand harsh industrial environments.
Customizable: Available in various sizes and designs to fit specific process requirements.
Easy Integration: Designed for easy installation into existing systems.
Cost-Effective: Provides a reliable and economical solution for contamination control.
Water Treatment: Removes impurities from water in various processing stages.
Food and Beverage: Ensures the purity of products by filtering out contaminants.
Pharmaceutical: Maintains high standards of cleanliness in the production process.
Chemical Processing: Protects equipment from damage caused by abrasive particles.

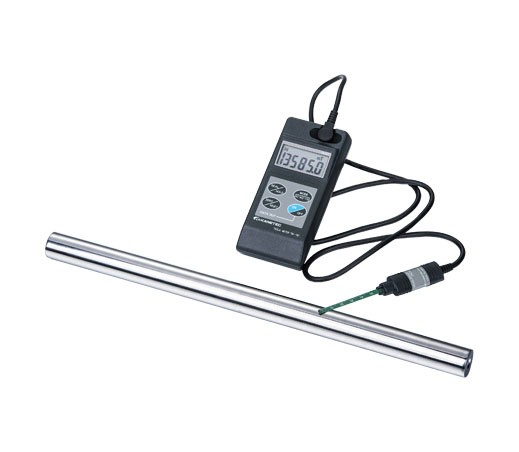

The relationship between conventional size, working temperature, and corresponding maximum surface gauss.

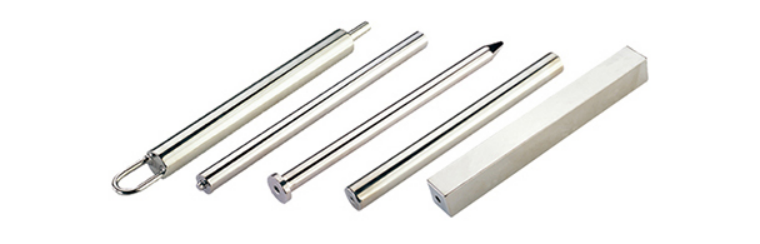

Type | Diameter | 0.25T | 0.5T | 0.7T | 0.9T | 1T | 1.1T | 1.2-1.5T | |
---|---|---|---|---|---|---|---|---|---|
Round | Φ16 | 350℃ | 100℃ | 80 | - | - | - | - | |
Φ19 | 350℃ | 350℃ | 350 | 120 | 100 | - | - | ||
Φ22 | 350℃ | 350℃ | 350 | 120 | 100 | 80℃ | - | ||
Φ25 | 350℃ | 350℃ | 350 | 150 | 120 | 100℃ | 80 ℃ | ||
Φ28 | 350℃ | 350℃ | 350 | 150 | 120 | 100℃ | 80 ℃ | ||
Φ32 | 350℃ | 350℃ | 350 | 150 | 120 | 100℃ | 80 ℃ | ||
Φ50 | 350℃ | 350℃ | 350 | 180 | 150 | 120℃ | 100℃ | ||
Φ102 | 350℃ | 350℃ | 350 | 180 | 180 | 150℃ | 120℃ | ||

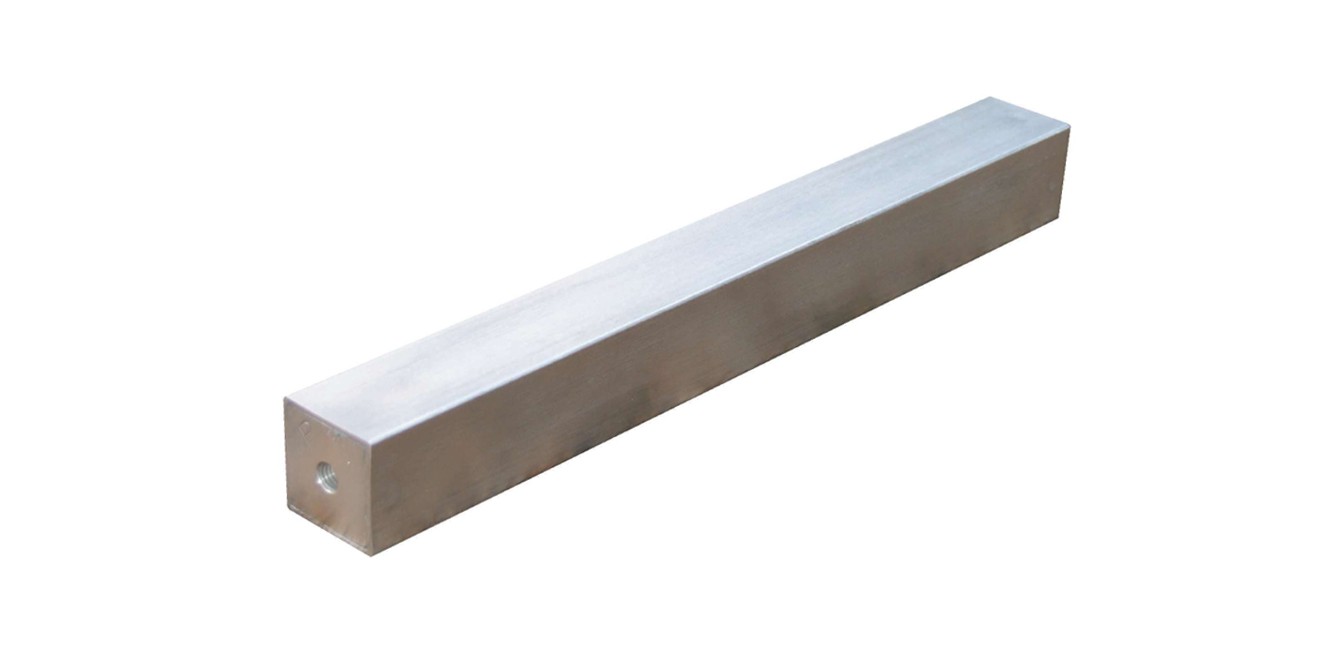

Square | 25X25 | 350℃ | 350℃ | 350 | 150 | 120 | 100℃ | 80℃ | |
Square | 50X50 | 350℃ | 350℃ | 350 | 180 | 150 | 120℃ | 100℃ |
Unit: degrees Celsius; Unit Conversion: 1T=10000Gauss
Material: High-grade stainless steel and other corrosion-resistant materials.
Magnetic Strength: Various levels available to suit different applications.
Size Options: Customizable to fit the specific dimensions of your system.
Enhanced Purity: Ensures the high quality of your end product.
Equipment Protection: Prevents damage to machinery by removing abrasive particles.
Process Efficiency: Improves the overall efficiency of your industrial processes.
