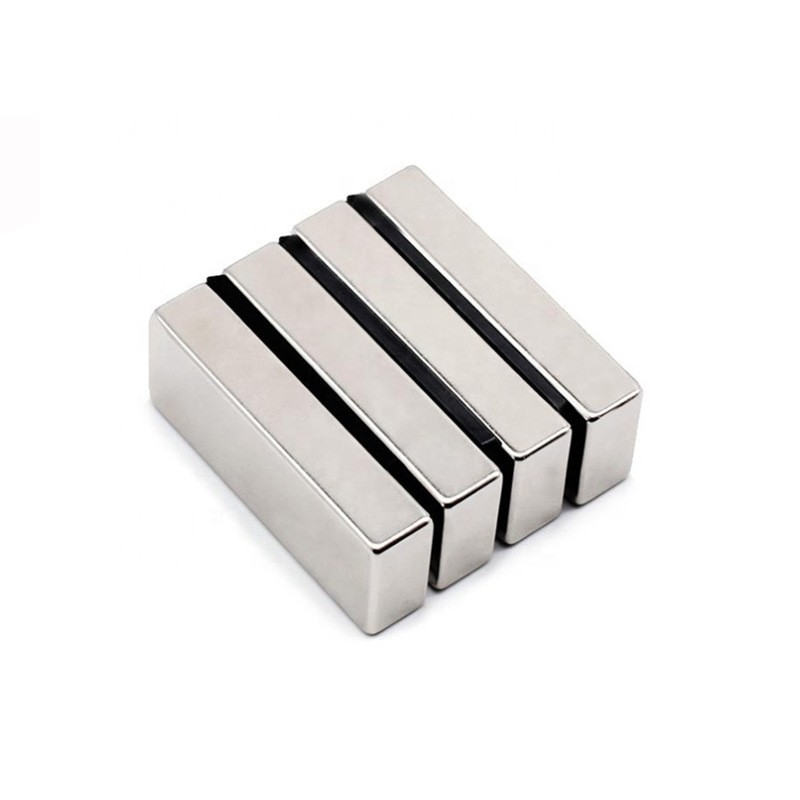

Customized Powerful Neodymium Magnets

Material: Neodymium magnets
Grade: N30-N55
Product Dimensions: 0.01-200mm (Customized)
Plating: Available in NiCuNi, Zn, Color Zn, Electroless Ni, Ni-Cu-Ni-Ag, Ni-Cu-Ni-Sn, Phosphate, Epoxy resin, Parylene, Everlube, Gold, Silver, Black nickle, Teflon
Shape: Customized (Arc, block, bar, disc, rod, ring, sphere)
Magnetization: Axially, Axially Multippole, Diametrically, Diametrically Multipole, Radially, Programmable, Skewed
Manufacturer: VN Magnets

Product Description:

Powerful Neodymium Magnets Introduction

Neodymium magnets, members of the rare-earth magnet family, are recognized for their remarkable strength in a small footprint. These magnets are typically made from an alloy consisting of neodymium, iron, and boron, and are commonly used in various industries due to their exceptional magnetic properties .

Classification:The magnets are categorized into different grades such as N, M, H, SH, UH, EH, and AH, each indicating varying levels of temperature resistance and strength. They are further classified by their shape and size to suit specific applications, such as disc, block, or custom shapes for intricate assemblies

Grade	Remanence		Coercivity		Intrinsic Coercivity		Max. Energy Product		Max. Working Temperature
	Br		Hcb		Hcj		(BH)max		Max. Working Temperature
	T	kGs	kA/m	kOe	kA/m	kOe	kJ/m3	MGOe	℃
N30	1.08-1.13	10.8-11.3	≥798	≥10.0	≥955	≥12	223-247	28-31	80
N33	1.13-1.17	11.3-11.7	≥836	≥10.5	≥955	≥12	247-271	31-34	80
N35	1.17-1.22	11.7-12.2	≥868	≥10.9	≥955	≥12	263-287	33-36	80
N38	1.22-1.25	12.2-12.5	≥899	≥11.3	≥955	≥12	287-310	36-39	80
N40	1.25-1.28	12.5-12.8	≥907	≥11.4	≥955	≥12	302-326	38-41	80
N42	1.28-1.32	12.8-13.2	≥915	≥11.5	≥955	≥12	318-342	40-43	80
N45	1.32-1.38	13.2-13.8	≥923	≥11.6	≥955	≥12	342-366	43-46	80
N48	1.38-1.42	13.8-14.2	≥923	≥11.6	≥955	≥12	366-390	46-49	80
N50	1.40-1.45	14.0-14.5	≥796	≥10.0	≥876	≥11	382-406	48-51	80
N52	1.43-1.48	14.3-14.8	≥796	≥10.0	≥876	≥11	398-422	50-53	80
N55	1.46-1.52	14.6-15.2	≥796	≥10.0	≥876	≥11	414-430	52-54	80
N35M	1.17-1.22	11.7-12.2	≥868	≥10.9	≥1114	≥14	263-287	33-36	100
N38M	1.22-1.25	12.2-12.5	≥899	≥11.3	≥1114	≥14	287-310	36-39	100
N40M	1.25-1.28	12.5-12.8	≥923	≥11.6	≥1114	≥14	302-326	38-41	100
N42M	1.28-1.32	12.8-13.2	≥955	≥12.0	≥1114	≥14	318-342	40-43	100
N45M	1.32-1.38	13.2-13.8	≥995	≥12.5	≥1114	≥14	342-366	43-46	100
N48M	1.37-1.43	13.7-14.3	≥1027	≥12.9	≥1114	≥14	366-390	46-49	100
N50M	1.40-1.45	14.0-14.5	≥1033	≥13.0	≥1114	≥14	382-406	48-51	100
N52M	1.43-1.48	14.3-14.8	≥1050	≥13.2	≥1114	≥14	398-422	50-53	100
N54M	1.45-1.50	14.5-15.0	≥1051	≥13.2	≥1114	≥14	414-438	52-55	100
N35H	1.17-1.22	11.7-12.2	≥868	≥10.9	≥1353	≥17	263-287	33-36	120
N38H	1.22-1.25	12.2-12.5	≥899	≥11.3	≥1353	≥17	287-310	36-39	120
N40H	1.25-1.28	12.5-12.8	≥923	≥11.6	≥1353	≥17	302-326	38-41	120
N42H	1.28-1.32	12.8-13.2	≥955	≥12.0	≥1353	≥17	318-342	40-43	120
N45H	1.32-1.36	13.2-13.6	≥963	≥12.1	≥1353	≥17	342-366	43-46	120
N48H	1.37-1.43	13.7-14.3	≥995	≥12.5	≥1353	≥17	366-390	46-49	120
N50H	1.40-1.45	14.0-14.5	≥1011	≥12.7	≥1353	≥17	382-406	48-51	120
N52H	1.43-1.48	14.3-14.8	≥1027	≥12.9	≥1353	≥17	398-422	50-53	120
N35SH	1.17-1.22	11.7-12.2	≥876	≥11.0	≥1592	≥20	263-287	33-36	150
N38SH	1.22-1.25	12.2-12.5	≥907	≥11.4	≥1592	≥20	287-310	36-39	150
N40SH	1.25-1.28	12.5-12.8	≥939	≥11.8	≥1592	≥20	302-326	38-41	150
N42SH	1.28-1.32	12.8-13.2	≥987	≥12.4	≥1592	≥20	318-342	40-43	150
N45SH	1.32-1.38	13.2-13.8	≥1003	≥12.6	≥1592	≥20	342-366	43-46	150
N48SH	1.37-1.43	13.7-14.3	≥1027	≥12.9	≥1592	≥20	366-390	46-49	150
N50SH	1.40-1.45	14.0-14.5	≥1003	≥12.6	≥1592	≥20	382-406	48-51	150
N28UH	1.04-1.08	10.4-10.8	≥764	≥9.6	≥1990	≥25	207-231	26-29	180
N30UH	1.08-1.13	10.8-11.3	≥812	≥10.2	≥1990	≥25	223-247	28-31	180
N33UH	1.13-1.17	11.3-11.7	≥852	≥10.7	≥1990	≥25	247-271	31-34	180
N35UH	1.17-1.22	11.7-12.2	≥860	≥10.8	≥1990	≥25	263-287	33-36	180
N38UH	1.22-1.25	12.2-12.5	≥876	≥11.0	≥1990	≥25	287-310	36-39	180
N40UH	1.25-1.28	12.5-12.8	≥899	≥11.3	≥1990	≥25	302-326	38-41	180
N42UH	1.28-1.32	12.8-13.2	≥899	≥11.3	≥1990	≥25	318-342	40-43	180
N45UH	1.32-1.36	13.2-13.6	≥908	≥11.4	≥1990	≥25	342-366	43-46	180
N48UH	1.37-1.43	13.7-14.3	≥908	≥11.4	≥1990	≥25	366-390	46-49	180
N28EH	1.04-1.08	10.4-10.8	≥780	≥9.8	≥2388	≥30	207-231	26-29	200
N30EH	1.08-1.13	10.8-11.3	≥812	≥10.2	≥2388	≥30	223-247	28-31	200
N33EH	1.13-1.17	11.3-11.7	≥836	≥10.5	≥2388	≥30	247-271	31-34	200
N35EH	1.17-1.22	11.7-12.2	≥876	≥11.0	≥2388	≥30	263-287	33-36	200
N38EH	1.22-1.25	12.2-12.5	≥899	≥11.3	≥2388	≥30	287-310	36-39	200
N40EH	1.25-1.28	12.5-12.8	≥899	≥11.3	≥2388	≥30	302-326	38-41	200
N42EH	1.28-1.32	12.8-13.2	≥899	≥11.3	≥2388	≥30	318-342	40-43	200
N45EH	1.32-1.36	13.2-13.6	≥899	≥11.3	≥2388	≥30	342-366	43-46	200
N28AH	1.04-1.08	10.4-10.8	≥787	≥9.9	≥2786	≥35	207-231	26-29	230
N30AH	1.08-1.13	10.8-11.3	≥819	≥10.3	≥2786	≥35	223-247	28-31	230
N33AH	1.13-1.17	11.3-11.7	≥843	≥10.6	≥2786	≥35	247-271	31-34	230
N35AH	1.17-1.22	11.7-12.2	≥876	≥11.0	≥2786	≥35	263-287	33-36	230
N38AH	1.22-1.25	12.2-12.5	≥899	≥11.3	≥2786	≥35	287-310	36-39	230
The above-mentioned data of magnetic properties and physical properties are given at room temperature.
The max working temperature of magnet is changeable due to length-diameter ratio, coating thickness and other environment factors.

Applications:Neodymium magnets are utilized in a wide array of applications:

Consumer Electronics: In headphones, speakers, and hard drives.
Automotive: Used in electric vehicles for motors and sensors.
Industrial Machinery: Employed in robotic arms and automated systems.
Renewable Energy: Crucial in wind turbines for their generators.

Contact for Inquiry:For detailed inquiries or to place an order, reach out to our sales team at info@vnmagnets.com. We are committed to providing you with the most suitable magnetic solutions tailored to your needs
